Imikhiqizo
SMTH-D35 SMPT 300 kuya ku-1000mhz Sucation Mountator
Ama-300 kuya ku-1000mhz Sucation Mountator Order Izibonelo Izibonelo
I-300 kuya ku-1000mhz Surface Piplucator Okucacisiwe Okucacisiwe
| Umlinga | 50 ω |
| Usayizi (mm) | Φ 13555.0 * 10.5 |
| Ukusebenza kwe-Temp | -40 ~ + 85 ℃ |
| Ukushisa okushisa | -50 ~ + 90 ℃ |
| I-Connectortype | I-smt |
I-300 kuya ku-1000mhz Surface Piplucator Propendation

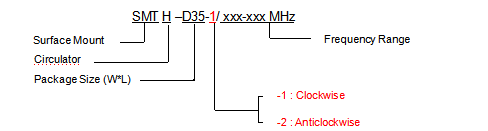

| Model No. (X = 1: → iwashi) (X = 2: ← Anticlockwise) | Mahhala Ukuqhelelana I-mhz | Il. db (max) | Ukuzihlukanisa db (min) | Vswr | Ubuqhwaga CW |
| SMTH-D35-X / 300-320MHz | 300-320 | I-0.60 | 20.0 | I-1.25 | 300 |
| SMTH-D35-X / 300-350mhz | 300-350 | I-0.80 | 18.0 | 1.35 | 300 |
| SMTH-D35-X / 309-339MHZ | 309-339 | 0.50 | 20.0 | I-1.25 | 300 |
| SMTH-D35X-X / 310-340MHHz | 310-340 | 0.50 | 20.0 | I-1.25 | 300 |
| SMTH-D35-X / 320-340MHZ | 320-340 | 0.45 | 20.0 | I-1.25 | 300 |
| SMTH-D35-X / 350-370MHz | 35050-370 | 0.40 | 20.0 | I-1.25 | 300 |
| SMTH-D35-X / 350-400mhz | 350-400 | 0.50 | 19.0 | I-1.25 | 300 |
| SMTH-D35-X / 361-366MHz | 361-366 | 0.30 | 23.0 | 1.20 | 300 |
| SMTH-D35-X / 370-420MHHz | 370-420 | 0.50 | 19.0 | I-1.25 | 300 |
| SMTH-D35-X / 380-410MHz | 380-410 | 0.40 | 20.0 | I-1.25 | 300 |
| SMTH-D35-X / 380-460mhz | 380-460 | 0.50 | 18.0 | 1.30 | 300 |
| SMTH-D35-X / 390-410MHz | 390-410 | 0.30 | 23.0 | 1.20 | 300 |
| SMTH-D35-X / 400-410MHz | 400-410 | 0.30 | 23.0 | 1.20 | 300 |
| SMTH-D35-X / 400-440MHz | 400-440 | 0.40 | 20.0 | I-1.25 | 300 |
| SMTH-D35-X / 400-450MHz | 400-450 | 0.40 | 20.0 | I-1.25 | 300 |
| SMTH-D35-X / 400-470MHHZ | 400-470 | 0.40 | 20.0 | I-1.25 | 300 |
| SMTH-D35-X / 400-500MHz | 400-500 | 0.50 | 19.0 | I-1.25 | 300 |
| SMTH-D35-X / 410-460mhz | I-410-460 | 0.40 | 20.0 | I-1.25 | 300 |
| SMTH-D35-X / 413-419MHz | 413-419 | 0.30 | 25.0 | 1.15 | 300 |
| SMTH-D35-X / 419-425MHz | 419-425 | 0.30 | 25.0 | 1.15 | 300 |
| SMTH-D35-X / 420-450MHz | 420-450 | 0.40 | 20.0 | I-1.25 | 300 |
| SMTH-D35-X / 420-480mhz | 420-480 | 0.40 | 20.0 | I-1.25 | 300 |
| SMTH-D35-X / 425-475MHz | 425-475 | 0.40 | 20.0 | I-1.25 | 300 |
| SMTH-D35-X / 429-439MHHZ | 429-439 | 0.30 | 25.0 | 1.15 | 300 |
| SMTH-D35-X / 430-440MHz | 430-440 | 0.30 | 23.0 | 1.20 | 300 |
| SMTH-D35-X / 430-460mhz | 430-460 | 0.40 | 20.0 | I-1.25 | 300 |
| SMTH-D35-X / 430-470MHZ | 430-470 | 0.40 | 20.0 | I-1.25 | 300 |
| SMTH-D35-X / 433-457MHHHHHz | 433-457 | 0.30 | 23.0 | 1.20 | 300 |
| SMTH-D35-X / 435-437MHHz | 435-437 | 0.30 | 23.0 | 1.20 | 300 |
| SMTH-D35-X / 440-470MHZ | 440-470 | 0.30 | 23.0 | 1.20 | 300 |
| SMTH-D35-X / 447-499MHHz | 447-499 | 0.30 | 23.0 | 1.20 | 300 |
| SMTH-D35-X / 450-456MHZ | 450-456 | 0.30 | 25.0 | 1.15 | 300 |
| SMTH-D35-X / 450-500MHz | 450-500 | 0.40 | 20.0 | I-1.25 | 300 |
| SMTH-D35-X / 450-520MHz | 450-520 | 0.40 | 20.0 | I-1.25 | 300 |
| SMTH-D35-X / 450-550MHz | 450-550 | 0.40 | 20.0 | I-1.25 | 300 |
| SMTH-D35-X / 455-465MHz | 455-465 | 0.30 | 25.0 | 1.15 | 300 |
| SMTH-D35-X / 459-486MHHZ | 459-486 | 0.30 | 23.0 | 1.20 | 300 |
| SMTH-D35-X / 470-490MHHz | 470-490 | 0.30 | 20.0 | 1.20 | 300 |
| SMTH-D35-X / 470-530mhz | 470-530 | 0.40 | 20.0 | 1.20 | 300 |
| SMTH-D35-X / 470-570Hz | 470-570 | 0.40 | 20.0 | I-1.25 | 300 |
| SMTH-D35-X / 470-610mhz | 470-610 | 0.50 | 18.0 | 1.30 | 300 |
| SMTH-D35-X / 475-525MHz | 475-525 | 0.30 | 23.0 | 1.20 | 300 |
| SMTH-D35-X / 495-516MHz | 495-516 | 0.30 | 23.0 | 1.20 | 300 |
| SMTH-D35-X / 500-600mhhz | 500-600 | 0.40 | 20.0 | 1.20 | 300 |
| SMTH-D35-X / 500-700mhHz | 500-700 | 0.70 | 17.5 | 1.35 | 300 |
| SMTH-D35-X / 570-670MHz | 570-670 | 0.30 | 23.0 | 1.20 | 300 |
| SMTH-D35-X / 580-720mhz | 580-720 | 0.45 | 20.0 | I-1.25 | 300 |
| SMTH-D35-X / 600-700MHHHz | I-600-700 | 0.40 | 20.0 | I-1.25 | 300 |
| SMTH-D35-X / 670-770MHz | I-670-770 | 0.30 | 23.0 | 1.20 | 300 |
| SMTH-D35-X / 690-860mhz | 690-860 | 0.40 | 20.0 | 1.20 | 300 |
| SMTH-D35-X / 700-862MHz | 700-862 | 0.50 | 18.0 | 1.30 | 300 |
| SMTH-D35-X / 700-900mhz | 700-900 | 0.50 | 18.0 | 1.30 | 300 |
| SMTH-D35-X / 703-862MHz | 703-862 | 0.40 | 20.0 | I-1.25 | 300 |
| SMTH-D35-X / 750-950mhz | I-750-950 | 0.50 | 18.0 | 1.30 | 300 |
| SMTH-D35-X / 770-860mhz | 770-860 | 0.30 | 23.0 | 1.20 | 300 |
| SMTH-D35-X / 60000MHHHZ | I-600-800 | 0.50 | 18.0 | 1.30 | 300 |
| SMTH-D35-X / 700-1000mhz | I-700-1000 | I-0.60 | 16.0 | 1.40 | 300 |
| SMTH-D35-X / 750-950mhz | I-750-950 | 0.40 | 20.0 | I-1.25 | 300 |
| SMTH-D35-X / 800-1000mhz | I-800-1000 | 0.40 | 20.0 | I-1.25 | 300 |
| SMTH-D35-X / 854-921MHz | 854-921 | 0.30 | 20.0 | 1.20 | 300 |
| SMTH-D35-X / 860-872MHz | 860-872 | 0.25 | 25.0 | 1.15 | 300 |
| SMTH-D35-X / 862-960mhz | I-862-960 | 0.30 | 25.0 | 1.20 | 300 |
| SMTH-D35-X / 900-930MHHz | 900-930 | 0.25 | 25.0 | 1.15 | 300 |
| SMTH-D35-X / 900-1000MHHZ | 900-1000 | 0.40 | 20.0 | I-1.25 | 300 |
Imiyalo:
1, lapho umpuli wesipuli we-surface amukela inqubo yokuvula i-welding, izinga lokushisa eliphakeme alidluli ama-degrees angama-260;
2, i-circulator ihlinzeka ngamandla kuphela, okubonisa ukuthi ukudluliselwa kwi-antenna nase-antenna kuya ekwamukelweni kungamandla;
3, kuphela amaza ajwayelekile etafuleni, angakhiqizwa ngokuya ngezidingo zomsebenzisi;
4, uma ungakutholi okufunayo, sicela uxhumane nathi!
